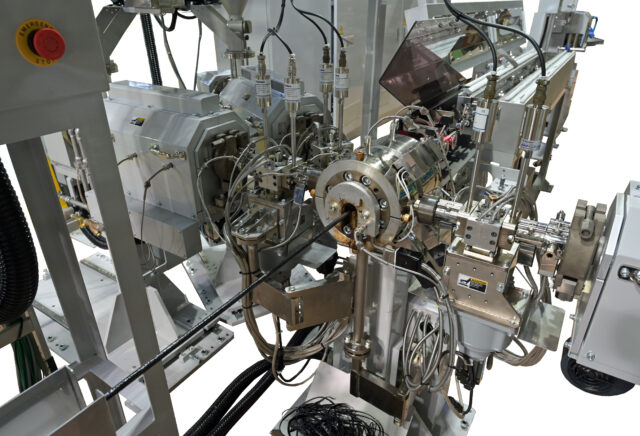

Endoscope tube manufacturing line
This device continuously coats TPU resin onto a stainless steel core tube.
It forms three layers using materials of different hardness. By varying the output of three extruders, the thickness of each layer can be adjusted, allowing different flexibility to be set for each section—such as the tip, middle, and rear end.
It forms three layers using materials of different hardness. By varying the output of three extruders, the thickness of each layer can be adjusted, allowing different flexibility to be set for each section—such as the tip, middle, and rear end.
Product Features
- Multiple stainless steel core tubes are connected and continuously coated with TPU resin.
- Highly accurate discharge rate control with three extruders and gear pumps allows varying layer thickness and different flexibility settings for each section of tubing.
- Changes in discharge rate are controlled by detecting the position of the tube connection fittings.
